MINI but Great Round LED Side Marker Lights

AUXITO 3/4" Mini Round LED Side Marker Lights are PC grade and can be used as gap lights, running lights, and side marker lights. Two-wire connection installation with grommets included. Each light has 3 high-flux LEDs that operate over a wide DC range of 12V, consume 90% less energy than incandescents, and emit brighter light than incandescents. Sonic-sealed polycarbonate lens and weather-resistant housing ensure your bulb can withstand all kinds of harsh outdoor environments with a service life of 50,000+ hours. Add the most aggressive look to your truck with this side light kit available in white, blue, green, red, and amber!

Specification

Product option:

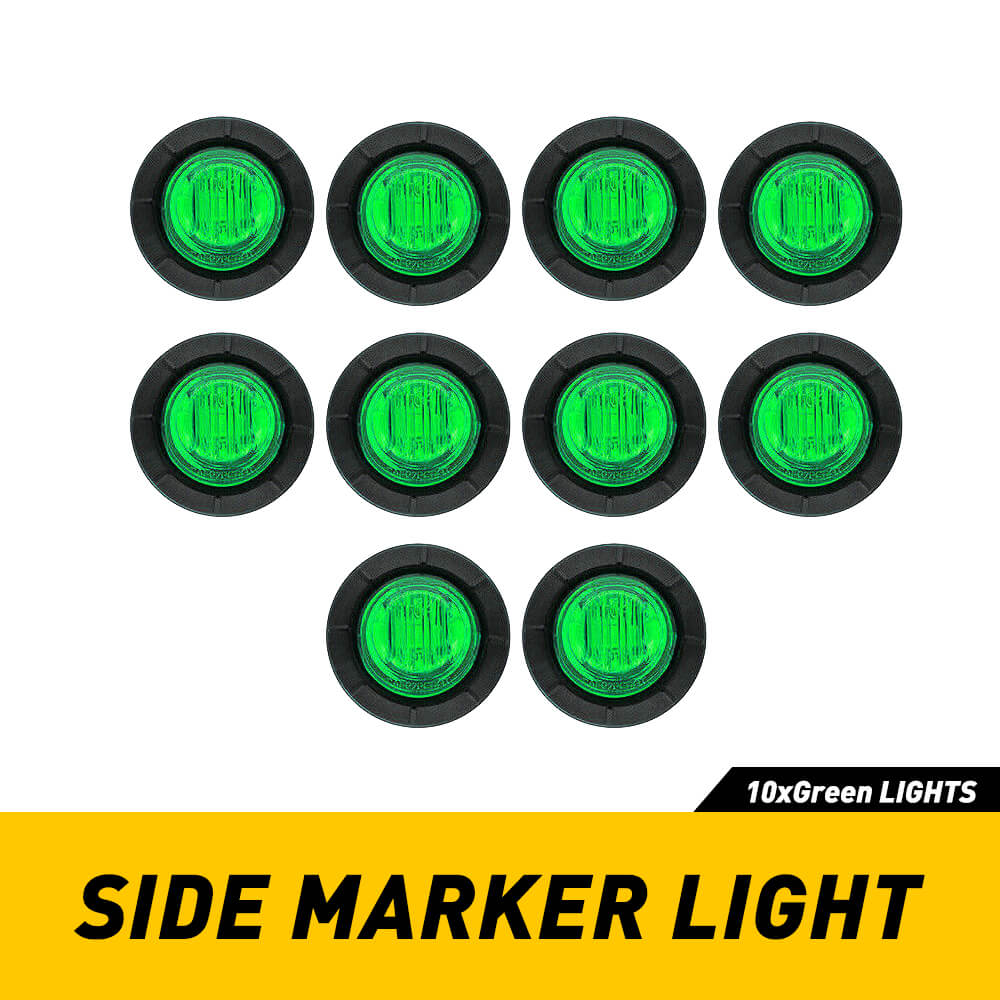

1. Green Side Marker Lights 10pcs
2. Blue Side Marker Lights 10pcs
3. Yellow Side Marker Lights 10pcs

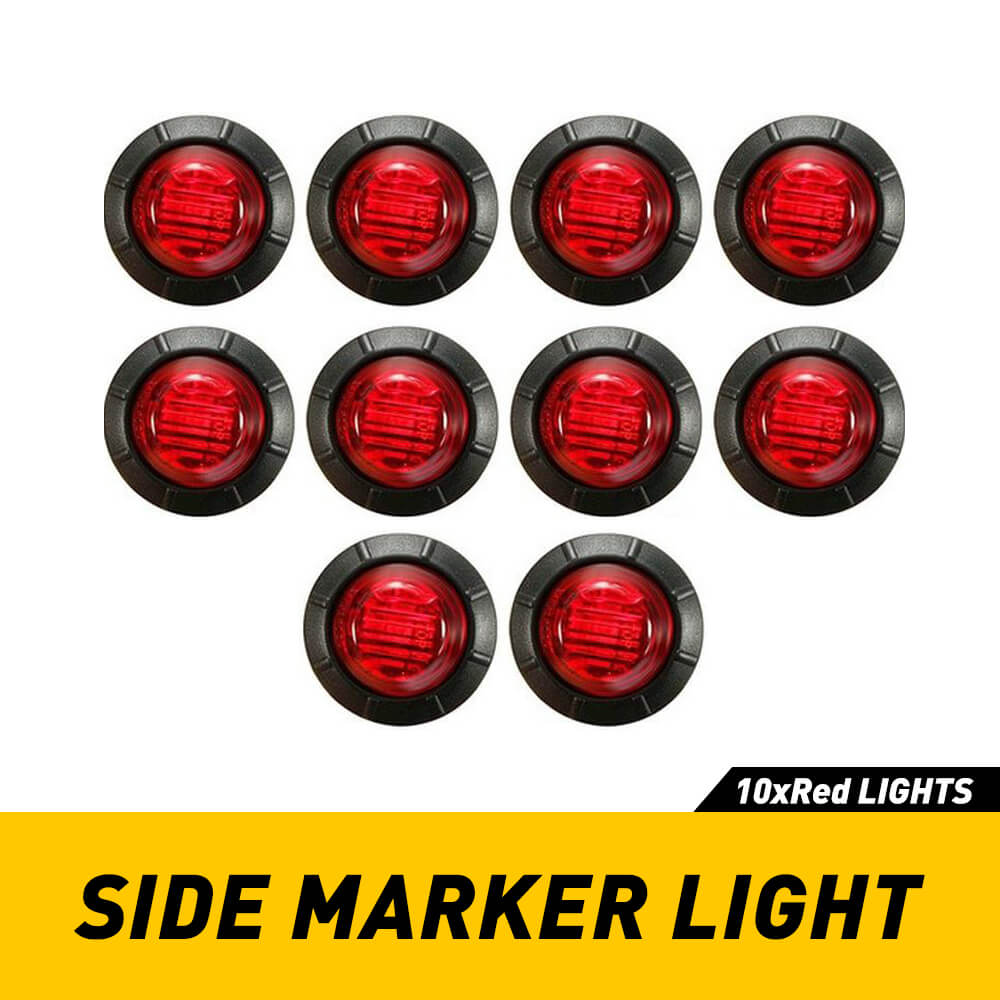

4. Red Side Marker Lights 10pcs
5. White Side Marker Lights 10pcs

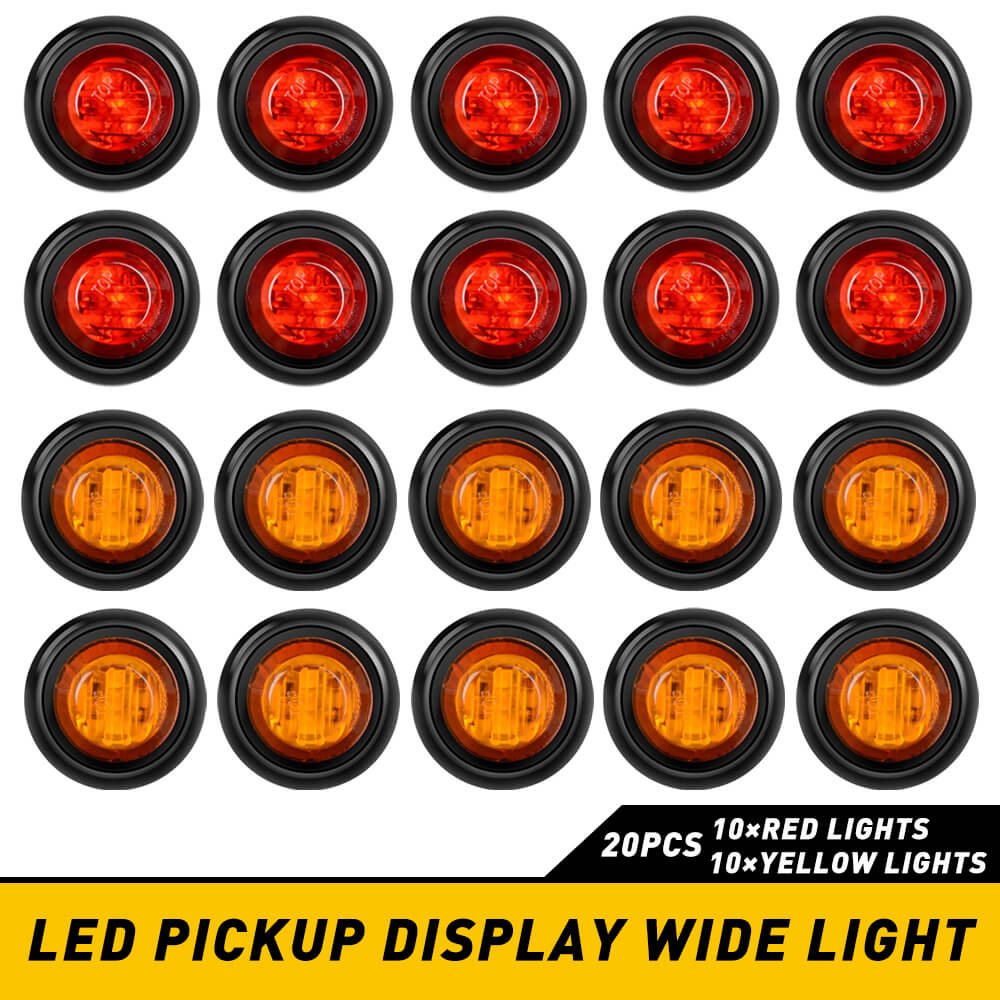

6. Red+Yellow Side Marker Lights 20pcs

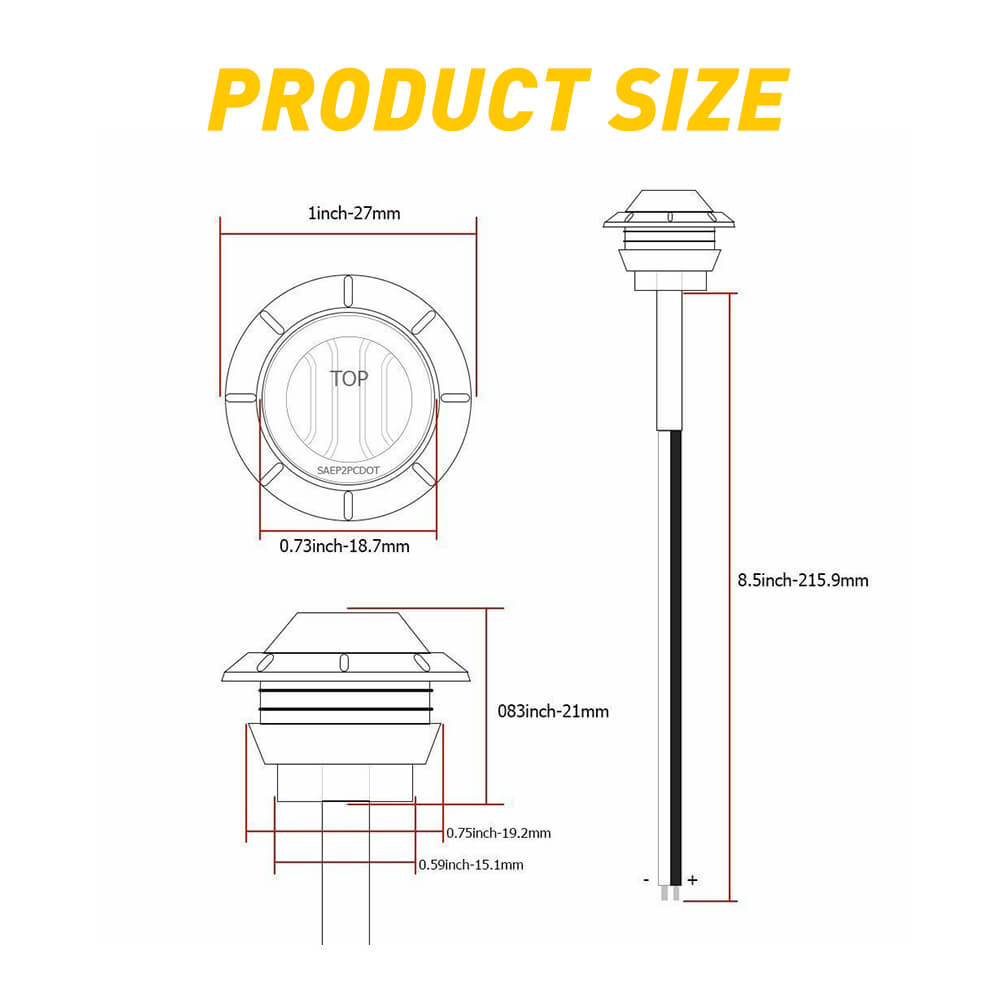

Dimension: 3/4" diameter

LED number: 3 LEDs

Waterproof: IP67

Housing Color: Green light with green shell, blue light with blue shell, yellow light with yellow shell, red light with red shell, white light with white shell

Wiring Mode: The black wire is connected to the negative pole(-), and the red, yellow, green, blue, and white wires are connected to the positive pole.

Material: PC Lens+Rubber grommet

Voltage: 12 V

Wattage: 1 W

Service life: more than 50000 hours

Wiring mode: Black positive(+) white negative(-)

Suitable For: Side Marker Light

Fit for: Universal For Any 12V Vehicles Heavy trucks(trucks, trailers, boats, buses, Lorries, Van, caravan)

TOP FEATURE

• Long-Lifespan: Universal 12V sealed 3/4" LED marker and clearance light. Low power consumption, high energy, long lifespan of 50,000 hours.
• Durability: 100% IP67 waterproof, shockproof and dustproof.
• High-Quality LED: A single side marker light contains 3 high-performance LEDs with good lighting stability. High luminous efficiency, high light output brightness. Very noticeable when driving at night.
• Simple installation: small appearance, two-wire connection, quick and easy installation
• Wide range of use: Built-in 12V DC power input circuit. As well as being able to be used on truck bodies, they can also be used on your trailer and truck bed, so you can use them anywhere you want to see them. 3/4" Miniature Round Truck Marking Lights for Running Lights, Side Markers or Identification Lights, Trailer Lights, etc.


INSTALLATION STEP

1. Disconnect the electrical connectors on the back.
2. Gently push the old side lights out of the rubber grommets. Pull out the rubber grommet and clean it before installing the new running lights.
3. Peel off the caps from the new side light prongs and place them in the rubber grommets.
4. Align the two tabs with the two locations on the back of the light. and press in firmly. You may need to hold the front of the light to keep it from being pushed back or out of the grommet.
5. As you push the harness, you may need to rock it back and forth a little to get it fully seated in the light.
6. Now that we've established the connection point we will continue to turn our running lights on so you can detect the difference with the new LED lights you've installed.
